APS 2500B-230 19IN



Download pdf pdf

Email for enquiry

Category:

Description

Energy saving – high efficiency

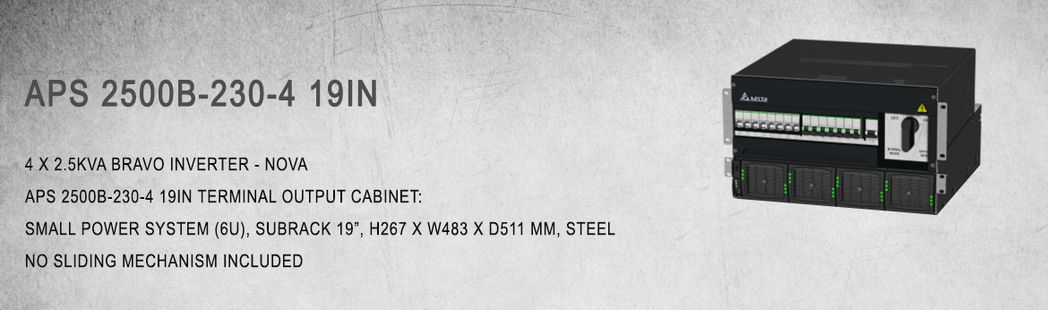

APS 2500B-230-4 19IN

Description:

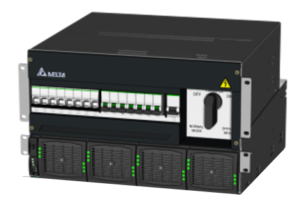

APS 2500B-230-4 19IN Terminal output Cabinet:
  • Small Power System (6U), Subrack 19”, H267 x W483 x D511 mm, steel
  • No Sliding mechanism included
AC Input:
  • 1-phase 230VAC, 1 x 63A input MCB
DC Input:
  • 4 x 63A input MCB
AC Distribution:
  • Terminal block (35mm2) L+N+PE
Inverter shelf:
  • Space and cabling for 4x API 2500B-230 inverter modules (nominal Power 10kVA)
    MONITOR TSI-T2S 1U RS485 BRAVO/MEDIA
APS 2500B-230-4 19IN DPN output Cabinet:
  • Small Power System (6U), Subrack 19”, H267 x W483 x D511 mm, steel
  • No Sliding mechanism included
AC Input:
  • 1-phase 230VAC, 1 x 63A input MCB
DC Input:
  • 4 x 63A input MCB
AC Distribution:
  • Space for 11 pcs of DPN breakers, No Distribution alarm
Inverter shelf:
  • Space and cabling for 4x API 2500B-230 inverter modules (nominal Power 10kVA)
    MONITOR TSI-T2S 1U RS485 BRAVO/MEDIA
APS 2500B-230-4 19IN RCD output Cabinet:
  • Small Power System (6U), Subrack 19”, H267 x W483 x D511 mm, steel
  • No Sliding mechanism included
AC Input:
  • 1-phase 230VAC, 1 x 63A input MCB
DC Input:
  • 4 x 63A input MCB
AC Distribution:
  • Space for 7 pcs of RCD breakers, No Distribution alarm
Inverter shelf:
  • Space and cabling for 4x API 2500B-230 inverter modules (nominal Power 10kVA)
    MONITOR TSI-T2S 1U RS485 BRAVO/MEDIA

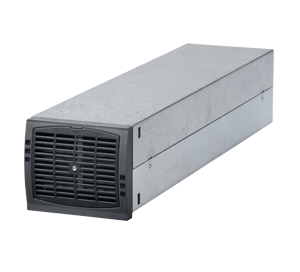

Bravo Inverter

2500VA Modular Inverter

BRAVO will be the most adequate response to mid to large output power needs.

Download pdf pdf



APS 2500B-230-8 19IN

Description:
APS 2500B-230-8 19IN DPN output Cabinet:
  • Small Power System (8U), Subrack 19”, H356 x W483 x D511 mm, steel
  • No Sliding mechanism included
AC Input:
  • 1-phase 230VAC, 1 x 125A input MCB
DC Input:
  • 8 x 63A input MCB
AC Distribution:
  • Space for 6 pcs of DPN breakers, No Distribution alarm
Inverter shelf:
  • Space and cabling for 8x API 2500B-230 inverter modules (nominal Power 20kVA)
    MONITOR TSI-T2S 2U RS485 BRAVO/MEDIA
APS 2500B-230-8 19IN RCD output Cabinet:
  • Small Power System (8U), Subrack 19”, H356 x W483 x D511 mm, steel
  • No Sliding mechanism included
AC Input:
  • 1-phase 230VAC, 1 x 125A input MCB
DC Input:
  • 8 x 63A input MCB
AC Distribution:
  • Space for 4 pcs of RCD breakers, No Distribution alarm
Inverter shelf:
  • Space and cabling for 8x API 2500B-230 inverter modules (nominal Power 20kVA)
    MONITOR TSI-T2S 2U RS485 BRAVO/MEDIA

Bravo Inverter

2500VA Modular Inverter

BRAVO will be the most adequate response to mid to large output power needs.

Download pdf pdf



Order Options

AC load distribution DPN (Choose size and amount of load breaker) / SCHNEIDER make
Load breaker IDPN 4 A
Load breaker IDPN 6 A
Load breaker IDPN 10 A
Load breaker IDPN 16 A
Load breaker IDPN 20 A
Load breaker IDPN 25 A
Load breaker IDPN 32 A
Load breaker IDPN 40 A
AC load distribution RCD (Choose size and amount of load breaker) / SCHNEIDER make
Load breaker RCD IDPNN 4 A
Load breaker RCD IDPNN 6 A
Load breaker RCD IDPNN 10 A
Load breaker RCD IDPNN 16 A
Load breaker RCD IDPNN 20 A
Load breaker RCD IDPNN 25 A
Load breaker RCD IDPNN 32 A
Load breaker RCD IDPNN 40 A
AC Distribution Alarm (Auxiliary switches)
Distribution alarm DPN
Distribution alarm RCD
Manual Bypass
Manual bypass 100A for APS 2500B-230-4
Manual bypass 160A for APS 2500B-230-8
Packing
Packing material (Only needed if not installed in a wall mounting box, supporting cabinet or outdoor cabinet at Delta production)
Rectifier modules
BRAVO DC-AC INVERTER 48V 56A 230VAC 10.9A BLK
CASE BLANK PANEL CET BRAVO BLK PLC
