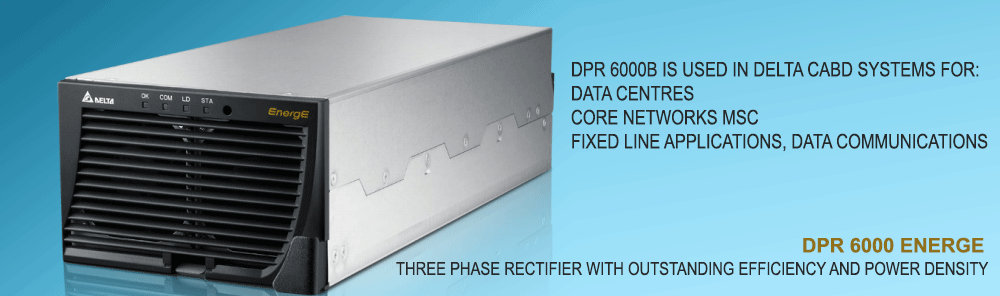

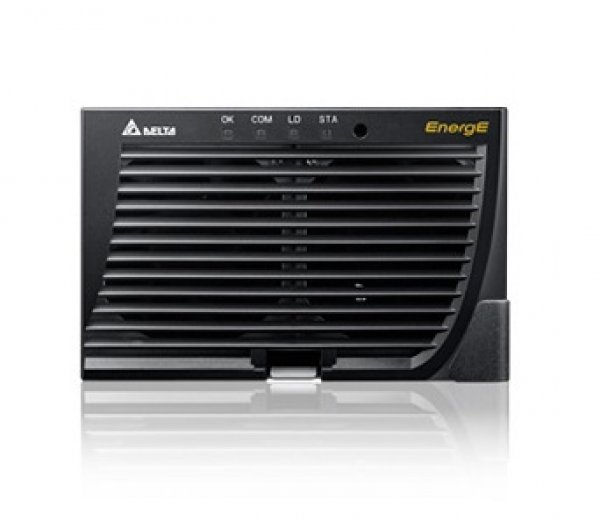

DPR 6000 EnergE



Three phase rectifier with outstanding efficiency and power density

Download pdf pdf


Email for enquiry

SKU: 230 Categories: ,

Description

  • Unique features that offer significant energy cost saving opportunities when replacing existing high power installations.
  • The compact size allows reducing the amount of cabinets in high power applications, which save valuable space in the installations.
  • This rectifier is optimal for installations, where the neutral connection is not available. Features include wide input voltage range and low input current distortion.
  • Installation is simplified as all Delta rectifiers have their connectors at rear and are hot-pluggable.
  • Fan cooling with speed control ensures near silent operations.

DPR 6000B is used in Delta CabD systems for:

Data centres
Core networks MSC
Fixed line applications, data communications

Power output 6000 W
Efficiency 96.5%
Power Density 26.5 W / in3
Control and monitoring ORION, ORION eco, ORION c
Hot-Pluggable Yes
Dimension(W x H x D) 129.5 x 83.0 x 380.7 mm
Weight 5.2 kg
Cooling Fan cooled with speed control
Safety EN / IEC 60950; UL 60950; CAN / CSA – C22.2
EMI EN 55022 class B
Environment RoHS compliant
