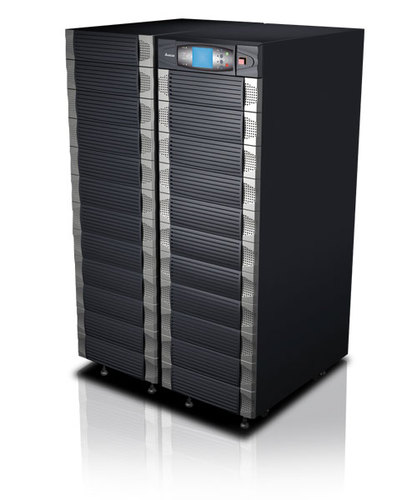

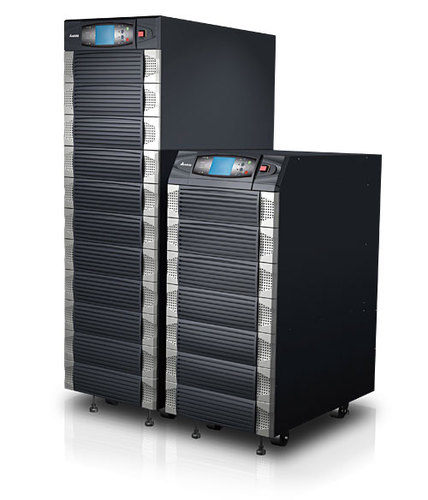

NH Plus Series, Three Phase 20-120 kVA

NH Plus Series, Three Phase, 20-120 kVA. The Modulon NH Plus Series UPS offers a hot-swappable modular structure. As a scalable UPS, the series was designed with the future growth of your business in mind, and can easily be upgraded or expanded as needed to accommodate increased requirements for power.

NH+20 kva order number: 3915101156-S		NH Plus Power module, 20kVA
NH+80 kva order number: GES803HP3312035		80 KVA NH Plus System Chassis, High Frequency, 3 phase in, 3 phase out, without Power module, without battery, Parallel function, 230V 50 HZ
NH+120 kva order number: GES124HP3312035		120 KVA NH Plus System Chassis only, High Frequency, 3 phase in ,3 phase out , without Power module, without battery, Parallel function, 230V 50 HZ

Download PDF

Email for enquiry

SKU: 131 Categories: HPH Series Accessories, Three Phase Slider

Description

Optional Battery Cabinets

GES401H02600035	Battery Unit for NH-series. Without batteries inside. (12V26AH x 40pcs x 1 Design)
GES401H04000035	Battery Unit for NH-series. Without batteries inside. (12V40AH x 40pcs x 1 Design)

Model	NHP-20K / NHP-40K / NHP-60K NHP-80K / NHP-100K / NHP-120K
Power Rating [20K] [40K] [60K] [80K] [100K] [120K]	20kVA / 18kW 40kVA / 36kW 60kVA / 54kW 80kVA / 72kW 100kVA / 90kW 120kVA / 108kW
Input Nominal Voltage Voltage range Current Harmonic Distortion Power Factor Frequency	380/220V, 400/230V, 415/240V (3 phase, 4-wire +G) 300~477 Vac (full load), 208~300 Vac (70%~100% load) < 3% (full load) > 0.99 45~65Hz
Output Voltage Output Power Factor Voltage Harmonic Distortion Voltage Regulation Frequency Overload Capability	380/220V, 400/230V, 415/240V (3 phase, 4-wire +G) 0.9 ≤ 3% (linear load) ± 1% (static) 50 or 60 Hz ± 0.05 Hz ≦ 125%: 10 minutes ≦ 150%: 1 minute
