Telecom and UPS Supplier and Installer
Battery Charger 192V (External) – 5/6KVA ONLY
Battery Charger 240V (External) – 10KVA ONLY
| Product snapshot | |
| Power rating | 5/6/8/10 kVA |
| Voltage |
Input: 175 ~ 280 Vac (full load) Output: 200/208(default)/220/230/240 Vac |
| Frequency |
Input: 40 ~ 70 Hz Output: 50/60 Hz (auto selectable) |
| Output Power Factor | Unity |
| Efficiency |
AC-AC mode: up to 95.5% ECO mode: up to 99% |
| Battery Volt. | 144, 192-264Vdc |
| Form Factor | 2U |

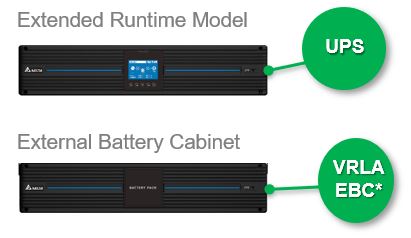

Standard External Battery Cabinet (EBC) for easy scaling of longer backup time.

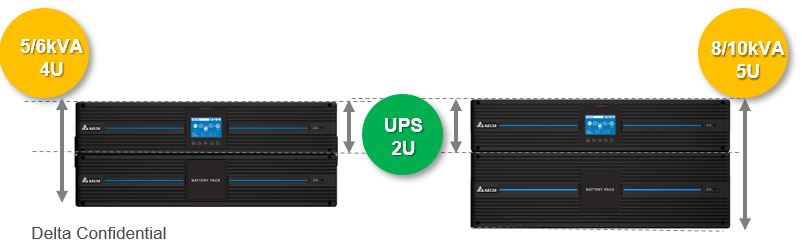

| 5kVA | 6kVA | 8kVA | 10kVA | |

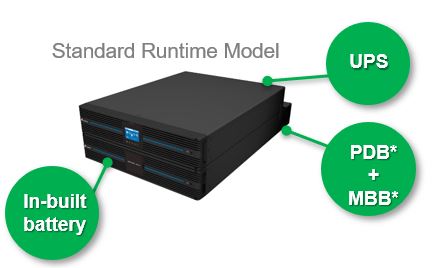

| UPS w/ Inbuilt Battery | 4U (7Ah x 16 pcs) | 5U (9Ah x 20 pcs) | ||
| External Battery Cabinet | 2U (1 x 7Ah x 16 pcs) | 3U (1 x 9Ah x 20pcs) | ||
| Charge current | 1A (default) | 1.5A (default) | ||
| Runtime (75% load) | 7.5 min. | 5.5 min. | 9 min. | 6 min. |
| Runtime (Full load) | 5 min. | 3 min. | 5 min. | 3.5 min. |
| 5kVA | 6kVA | 8kVA | 10kVA | |
| External Battery Cabinet | 2U (1 x 7Ah x 16 pcs) or 3U (1 x 9Ah x 20pcs) | |||
| Charge Current | Up to 8A | |||
