Modular Rack



The modular rack system offers stable data storage and peace of mind for data center owners who look ahead to the future.

Download pdf pdf


Email for enquiry

SKU: 219 Category:

Description

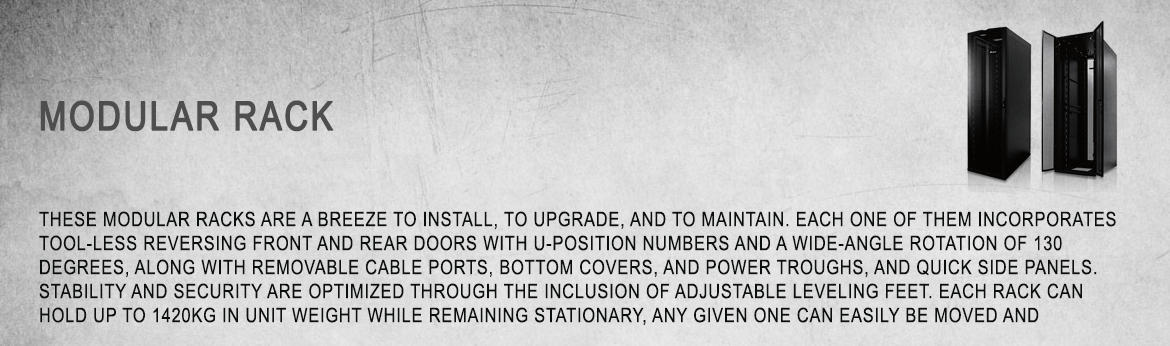

These modular racks are a breeze to install, to upgrade, and to maintain. Each one of them incorporates tool-less reversing front and rear doors with U-position numbers and a wide-angle rotation of 130 degrees, along with removable cable ports, bottom covers, and power troughs, and quick side panels. Stability and security are optimised through the inclusion of adjustable levelling feet. Each rack can hold up to 1420kg in unit weight while remaining stationary, any given one can easily be moved and manoeuvred to different places as need be due to the convenient casters upon which it is mounted.

Physical
Item Model W (mm) H (mm) D (mm) Packing Dimensions W x H x D (mm) Net Weight (kg)
1 SR3110 800(19″) 2000 1100 830*1160*2156 150
2 SR1110 600 2000 1100 630*1160*2156 137



Conformance
Protection Rating IP20
Rack Standards EIA-310-D
Safe Grounding UL 60950 (max. 63A)
Environmental RoHS



Environment
Temperature Operating: 0 ~ 40˚C
Storage: -15 ~ 50˚C
Relative Humidity Operating: 0 ~ 95%
Elevation Operating: 0 ~ 3000m
