Description
This rectifier is optimal for 1U or 3U shelf solutions. Its short depth and extended operating temperature range make it most suitable for space-critical and pole-mount applications

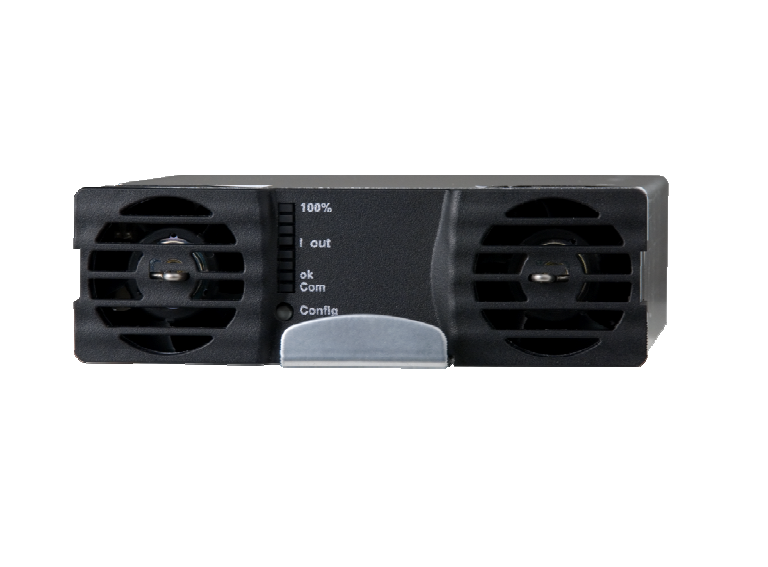

DPR 1600
The DPR 1600 Series is a single phase rectifier with outstanding power density.
| Input | |
| Mains voltage | 85 – 300 Vrms |
| Mains frequency | 50 / 60 Hz |
| Harmonic distortion (THD) | 5 % |
| EMI (conducted) | EN 55022, class B |
| Protection | Internal fuse 2 x 15 A |
| AC over voltage protection | Incl. loss of neutral |
| Output | |
| Nominal system voltage | 53.5 V |
| Operating voltage range | 42 – 58 V |
| Power limitation | 1600 W |
| Current limitation | 33.4 A |
| Overvoltage protection | 59 V |
| EMI (conducted) | EN 55022, class A |
| Load sharing | yes |
| Protection | Internal fuse |
