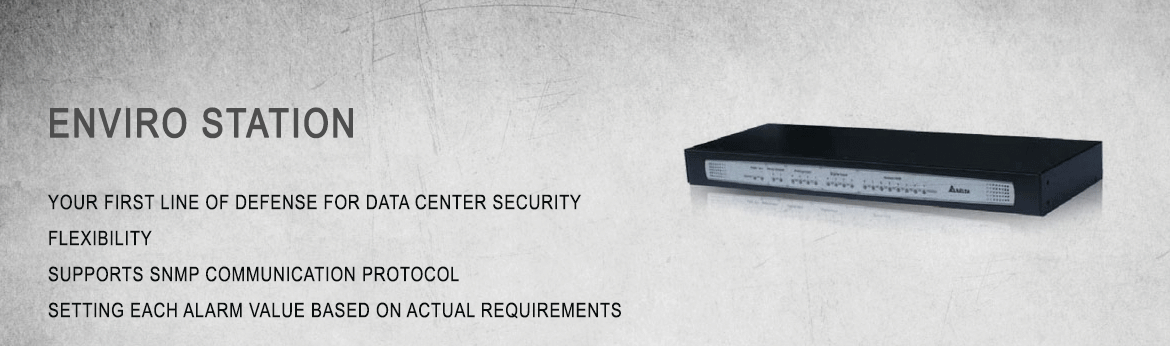

EnviroStation

Description

Delta’s Environment Management System (EMS) monitors the environment and conditions in the data center, including temperature, humidity, water leakage, alarms for fire, smoke, and unauthorized entry. The EMS offers IT managers an integrated platform for more convenient monitoring of today’s data center.

EnviroStation integrates the monitoring of the data center’s environment and other conditions, and sends the data to a central manager via network. User-defined alarms ensure the data center’s security.

Model		EMS2000
Input	Power	100~240 Vac, 50/60 Hz
	Digital Input (x4)	Wet Contact Signal Alarm Voltage 5~24 Vdc, 1-9 mA Dry Contact Signal Normal: Off (open circuit) Alarm: On (short circuit)
	Analog Input (x2)	Voltage: 0~10Vdc Current: 4~20 mA
	Resistance Temperature Detection (x1)	Range: 0~50°C Accuracy: ± 1°C with 3-wire PT100 Support 2-wire or 3-wire resistance
	Leakage (x1)	Detect Voltage < 1V (alarm signal with S-1FP leak sensor)
Output	Sensor HUB (x8)	For connection with sensor devices (such as smoke detectors, fire detectors, or door sensors, etc) and support: + 12V, 0.8A (max) + 24V, 1.0A (max) One port limit 0.6A
	Delta Bus (x1)	+ 12V, 0.8A (max)
	Relay Output (x2)	26 Vdc (max), 0.8A (max)
Network Connection	RJ45 (X1)	10/100 Base-T
	RS485 (X2)	Standard ModBus
	Console (X1)	Connect to PC via RJ-45 to DB9 cable (cable is included in the package) A configuration port is available for the console mode
Alert	Warning Light (X1)	Included in the package and can connect to EMS2000 via a Sensor Hub converter (through Port 1 or Port 2) to alert for abnormal conditions
Environment	Operating Temperature	0~45°C
	Storage Temperature	-20°C ~ 60°C
	Operating Humidity	0~ 90% RH (non-condensing)
Dimensions	W x D x H	440 x 157 x 44 mm
Weight	Net Weight	2.4 kg
