APS 750B-230-4 19IN Terminal output Cabinet:

• Small Power System (4U), Subrack 19”, H178 x W483 x D411 mm, steel

• No Sliding mechanism included

AC Input:

– 1-phase 230VAC, 1x16A input MCB

DC Input:

– 1 x 63A input MCB

AC Distribution:

– Terminal block (6mm2) L+N+PE

Inverter shelf:

– Space and cabling for 4x API 750B-230 inverter modules
(nominal Power 3kVA)
MONITOR TSI-T2S 1U RS485 NOVA

APS 750B-230-4 19IN DPN output Cabinet:

• Small Power System (4U), Subrack 19”, H178 x W483 x D411 mm, steel

• No Sliding mechanism included

AC Input:

• 1-phase 230VAC, 1x16A input MCB

DC Input:

• 1 x 63A input MCB

AC Distribution:

• Space for 14 pcs of DPN breakers, No Distribution alarm or
  Space for 9 pcs of DPN breakers with Distribution alarm

Inverter shelf:

• Space and cabling for 4x API 750B-230 inverter modules
  (nominal Power 3kVA)

MONITOR TSI-T2S 1U RS485 NOVA

APS 750B-230-8 19IN Terminal output Cabinet:

• Small Power System (5U), Subrack 19”, H223 x W483 x D411 mm, steel
• No Sliding mechanism included

AC Input:

• 1-phase 230VAC, 1x25A input MCB

DC Input:

• 2 x 63A input MCB

AC Distribution:

• Terminal block (6mm2) L+N+PE

Inverter shelf:

• Space and cabling for 8x API 750B-230 inverter modules (nominal Power 6kVA)

MONITOR TSI-T2S 1U RS485 NOVA

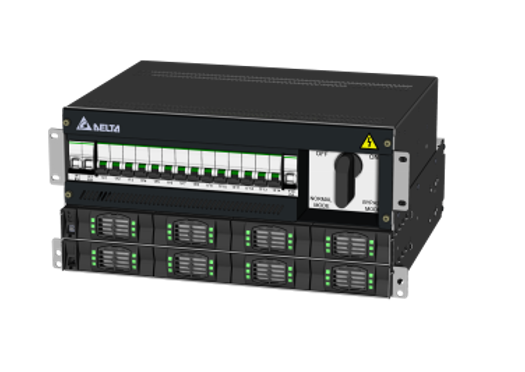

APS 750B-230-8 19IN DPN output Cabinet:

• Small Power System (5U), Subrack 19”, H223 x W483 x D411 mm, steel
• No Sliding mechanism included

AC Input:

• 1-phase 230VAC, 1x25A input MCB

DC Input:

• 2 x 63A input MCB

AC Distribution:

• Space for 14 pcs of DPN breakers, No Distribution alarm or
  Space for 9 pcs of DPN breakers with Distribution alarm

Inverter shelf:

• Space and cabling for 8x API 750B-230 inverter modules (nominal Power 6kVA)

MONITOR TSI-T2S 1U RS485 NOVA
