Description
Key features:
- Hot-pluggable
- 95.2 % Efficiency
- Nominal 53.5 V DC
- Operating 42 V to 58 V
- 4050 W output
- 83.3 A Current limitation
- 50 Hz / 60 Hz
- Power density 27.3 W / in3
- Weight 3.5 kg
- IP20 (EN 60529)

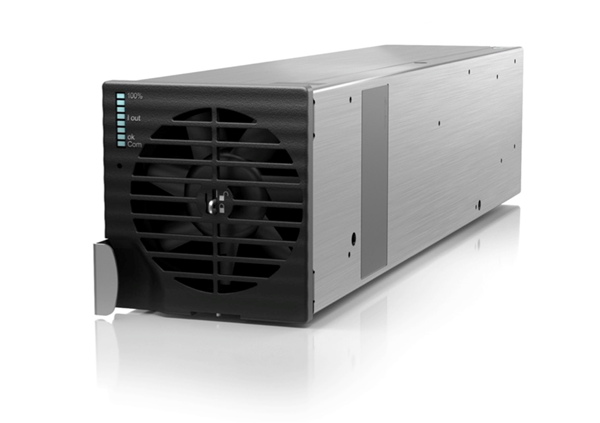

DPR4000B-48
- The new module DPR4000B-48 ID:G10 (97%), SAP p/n TPS1010040A, can be used for retrofitting existing installations. It supports operation of ‘mixed’ systems.
Complete DPS Solutions
| Parameter | DPR 4000B – 48 TPS1010040A | DPR 4000B – 48
-compatibles- |
Comments |
| Efficiency | 97% | 95% | |
| Major use cases | Flexible usage | For improvement of system efficiency
For extension of existing systems For replacement of modules For extension of system lifetime |
|
| Mechanical size / shape | Compatible | ||
| Backplane connector | Compatible | ||
| Hot plug-in | Compatible | No need to adjust settings on controller | |
| Rectifier locking in shelf | Compatible | ||
| Temperature range | Compatible | ||
| AC-input / DC-output characteristics | Compatible | ||
| Load sharing | Compatible | Load is equally shared in mixed systems | |
| LEDs | 4 bicolor LEDs | 8 LED bar-graph | |
| Type of rectifier to be selected on controller | Compatible | Select “DPR4000B-48” as rectifier type in controller settings. Same as before. | |
| Controller support | PSC3, ORION, ORION Touch, ORIONc Touch | ||
| Rectifier positioning | Compatible | EEPROM based positioning | |
| Prioritization of 97% module over 95% module | Available | New feature, available from ORION V7.60 and from ORION Touch V8.60 | |
| Rectifier functions | Compatible | ||
- Peak efficiency > 97%
- Very wide range over 95.5% efficiency
