PVC 2200-48 EnergE



Output: -48V, 46.0A, 2200W, photovoltaic battery charger for telecommunication systems.

Download pdf pdf

Email for enquiry

SKU: PVC2200-48 AIR Category:

Description

The PVC 2200B is a photovoltaic battery charger for telecommunication systems, converting solar energy to -48V telecom power systems. The flexible design supports application in standalone applications or hybrid power applications in cooperation genset supply, AC grid, wind energy or fuel cell supply.

The modular format offers easy scalability. The high efficiency in terms of power conversion and MPPT performance creates direct and indirect savings in the overall power conversion in rectifiers and cooling systems as well.

The compact size and the extended operating temperature range make this series applicable for both indoor and outdoor applications.

Specs

Model PVC 2200B-48
Input
Mains voltage
Mains voltage (full power)
Current
EMI (conducted)
Protection
50 – 350 V
250 – 350 V
10 A
EN 55022, class A
Internal fuse
Output
Nominal system voltage
Peak power
Current limitation
Over voltage protection
EMI (conducted)
Protection
-48 V
2200 W
46.0 A
59.0 V
EN 55022, class A
Internal fuse

Solar add-on kits

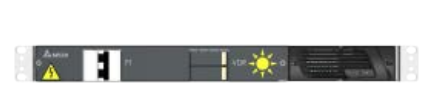

PVS 2200B-48-1
PVS 2200B-48-3
PVS 2200B-48-6
Delta Solar add-on kits are an ideal solution for enhancing existing On-grid and off-grid powered system installations.
The usage of free renewable solar energy provides a strategic way to reduce total contractual energy bill/consumption and CO 2 emissions from your telecommunication sites, enabling significant large-scale savings on energy costs and reducing the carbon footprint of your network during its operational lifetime.

Read more

Controller
 Optimised functionality for a typical telecom power supply system
 Fully backwards compatible with previous ORIONeco version
 Large and easy to read colour display with touch functionality for
easy and convenient local operation
 Integrated WEB server – very easy to use and operate
 Remote monitoring via Gigabit Ethernet
 Easy maintenance by pluggable architecture and MicroSD card
slot to enable automatic backup
 Flexible customization of remote alarms
 Advanced battery management and testing methods
Orion Controller
Read more
