Description

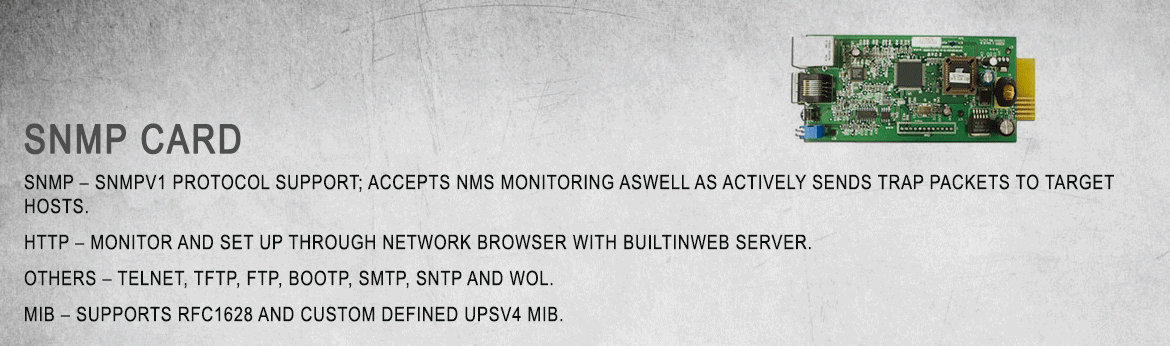

SNMP card is additional communication interface between UPS and the network. Allows UPS remote control and monitoring trough network. The card can be installed in all type of UPS with Smart slot.

Features

Network
SNMP – SNMPv1 protocol support; accepts NMS monitoring aswell as actively sends Trap packets to target hosts.
HTTP – Monitor and set up through network browser with built-in web server.
Others – Telnet, TFTP, FTP, BOOTP, SMTP, SNTP and WOL.
MIB – Supports RFC1628 and custom defined UPSv4 MIB.

Management
Regular power on and off – Can set up UPS power on and off time.
Regular testing – Battery discharge test to ensure the battery is in good condition.
Smart power off – Can send power off signal to connected host actively the host computer has the InsightPower Client orSNMP power off proxy installed.
Sensor – Optional environment sensor can integrate ambient temperature and humidity for total cabinet monitoring.

Diagnosis
Event log – Keep date, time, and event sequence in event log file.
History records – Keep date, time, and UPS parameter data. Can be exported into XLS file for further processing.

Reaction to events
UPS shutdown – Define delay time for UPS power off to avoid deep discharge.
Email – Send email notification to predefined recipients in case of power event.

10 / 100M RJ45 connector
Operation temperature	0 ~ 40°C
Operation humidity	10 ~ 80 %
Input power	9 ~ 24 VDC
Power consumption	< 1W
Dimensions	130 x 60 mm
Weight	58 g
