Description

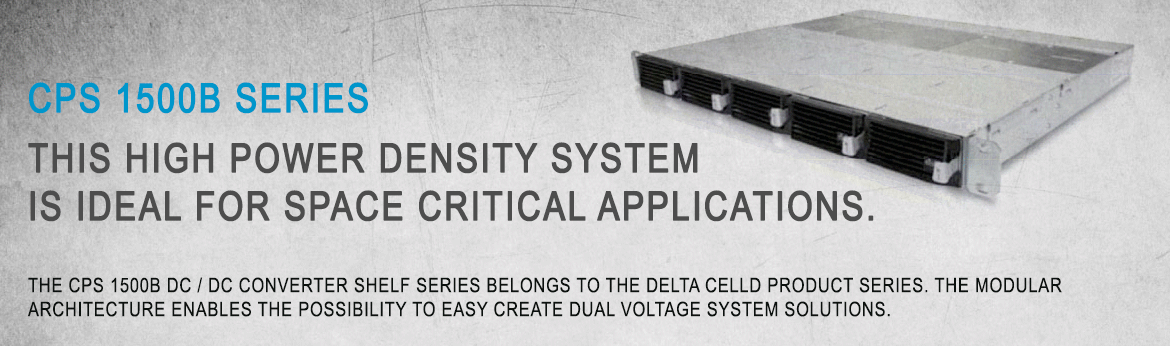

The CPS 1500B DC / DC converter shelf series belongs to the Delta CellD product series. The modular architecture enables the possibility to easy create dual voltage system solutions.
CPS 1500B Series
This high power density system is ideal for space critical applications.
Input |
|
| Input voltage
EMI (conducted) Protection |
19 – 30 V *1 / 38 – 60 V *2
EN 55022, class A Internal fuse |
Output |
|
| Factory default voltage
Voltage configuration range Power limitation – 23 inch Power limitation – 19 inch Current limitation – 23 inch Current limitation – 19 inch |
|
General |
|
| Dimensions (W x H x D) 23 in
Weight, 23 inch shelf Dimensions (W x H x D) 19 in Weight, 19 inch shelf Efficiency Ambient temperature Relative humidity Safety
Applicable controller Applicable DC / DC converters
|
584.2 x 43.7 x 400.3 mm/23.00 x 1.72 x 15.88 in
5.5 kg / 12.1 lb 482.6 x 43.7 x 400.3 mm/19.00 x 1.72 x 15.88 in 4.8 kg / 10.6 lb 94.3 % *1 / 95 % *2 -40 to +75 °C / -40 to +167 °F 95 % max, non cond. EN / IEC 60950 UL 60950 CAN / CSA – C22.2 PSC 3 (not included in shelf) CPC 1500B – 48 *1 |
