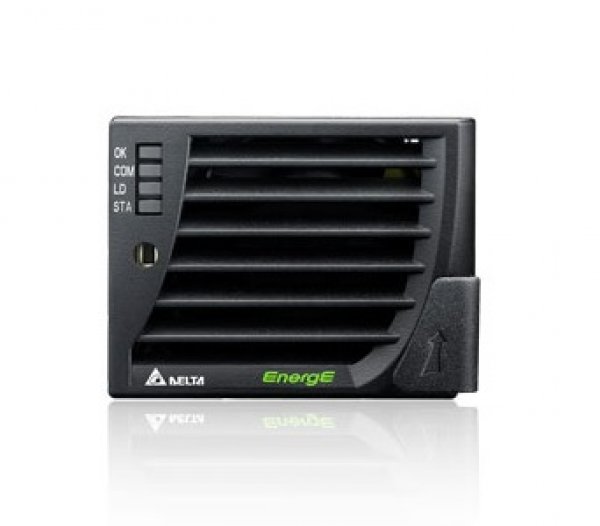

DPR 850B Series is a single phase rectifier with outstanding efficiency and power density.
DPS 850B-48-3 CellD 40
DPS 850B-48-3 CellD 100
This rectifier is optimal for 1U shelf solutions, and the short depth and extended operating temperature range make it most suitable for space-critical wired and wireless broadband applications.
Easy installation is secured as all Delta rectifiers are hot-pluggable and have connectors at the rear. The fan cooling with speed control ensures silent operations.
| Power output | 850 W |
| Efficiency | 95.2% |
| Power Density | 30 W / in3 |
| Control and monitoring | ORION, ORION eco, ORION c |
| Hot-Pluggable | Yes |
| Dimension(W x H x D) | 51.8 x 40.0 x 247.2 mm |
| Weight | 0.6 kg |
| Cooling | Fan cooled with speed control |
| Safety | EN / IEC 60950; UL 60950; CAN / CSA – C22.2 |
| EMI | EN 55022 class B |
| Environment | RoHS compliant |
