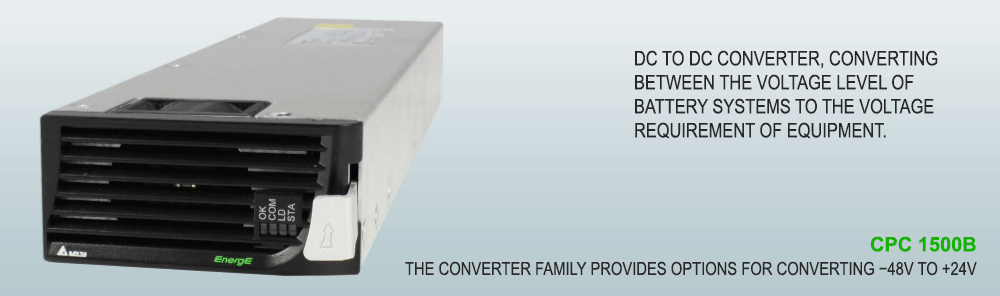

The converter family provides options for converting −48V to +24V and +24V to −48V.
DC to DC converter, converting between the voltage level of battery systems to the voltage requirement of equipment. The modular format enables easy integration into the standard shelf solutions of existing DC power systems for producing a multi-voltage power solution.
| Input voltage range |
CPC 1500B-48: 19 – 30 V CPC 1500B-24: 38 – 60 V |
| Output voltage, nominal |
CPC 1500B-48: 54 V CPC 1500B-24: 27 V |
| Output voltage, setting range |
CPC 1500B-48: 48 – 56 V CPC 1500B-24: 24 – 28 V |
| Maximum power | 1500 W |
| Maximum current |
CPC 1500B-48: 29 A CPC 1500B-24: 58 A |
| Efficiency |
CPC 1500B-48: 94.3 % CPC 1500B-24: 95 % |
| Power density | 34 W/in³ |
| Cooling | Fan cooled |
| Control and monitoring | PSC 3 |
CPC Accessories |
||
CPS 1500B
|
Orion Controller
|
|
| The CPS 1500B DC / DC converter shelf series belongs to the Delta CellD product series. The modular architecture enables the possibility to easy create dual voltage system solutions. This high power density system is ideal for space critical applications. Read more |

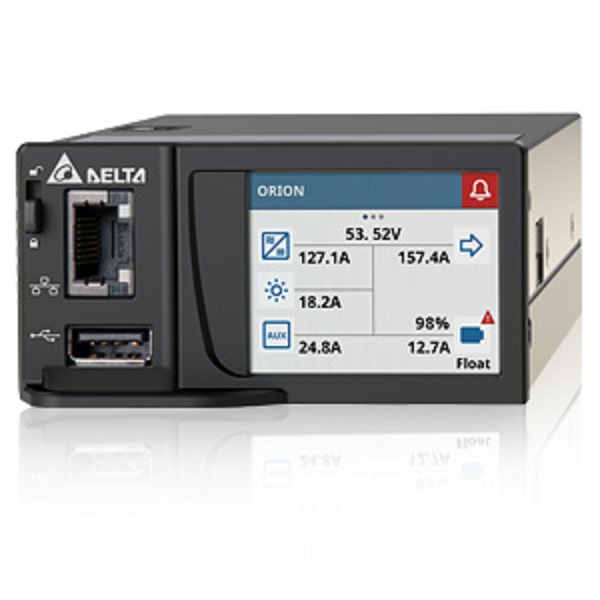

Optimised functionality for a typical telecom power supply system Fully backwards compatible with previous ORIONeco version Large and easy to read colour display with touch functionality for easy and convenient local operation Integrated WEB server – very easy to use and operate Remote monitoring via Gigabit Ethernet Easy maintenance by pluggable architecture and MicroSD card slot to enable automatic backup Flexible customization of remote alarms Advanced battery management and testing methods Read more |
|
