Telecom and UPS Supplier and Installer
Power Reliability with the Best Total Cost of Ownership
| 20KVA Order number: GES203HH330035 | UPS 20KVA I/O=230/400V | |
| 30KVA Order number: GES303HH330035 | UPS 30KVA I/O=230/400V | |
| 40KVA Order number: GES403HH330035 | UPS 40KVA I/O=230/400V | |
| 60KVA Order number: GES603HH330035 | UPS 60KVA,NO BATT,I/O=220/380V Y WB | |
| 80KVA Order number: GES803HH330035 | UPS 80KVA,NO BATT,I/O=220/380V Y WB | |
| 100KVA Order number: GES104HH330035 | UPS 100KVA,NO BATT,I/O=220/380V Y WB | |
| 120KVA Order number: GES124HH330035 | UPS 120KVA,NO BATT,I/O=220/380V Y WB | |
HPH Series, Three Phase 20 – 120 kW, Front-door battery replacement with hot-swappable battery tray design supports easy and quick replacement without turning the unit off (HPH-B / BN).
Delta’s true online double-conversion Ultron HPH Series is the solution for small and medium data centers and mission critical applications requiring highly reliable power protection and unbeatable energy efficiency.

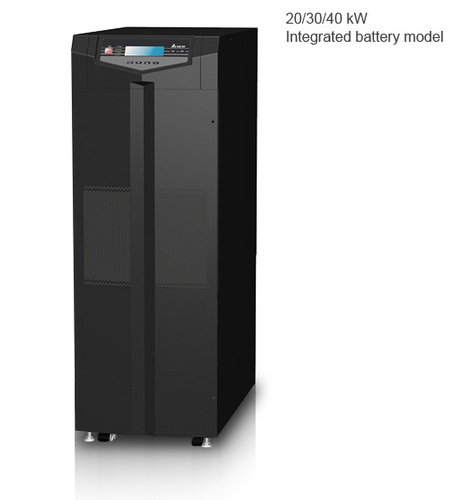

| HPH 20KVA | GES203HH33B035 | HPH integrated battery 20kVA 380/400/415V, 50/60Hz, ready for battery |
| HPH 30KVA | GES303HH33B035 | HPH integrated battery 30kVA 380/400/415V, 50/60Hz, ready for battery |
| HPH 40KVA | GES403HH33B035 | HPH integrated battery 40kVA 380/400/415V, 50/60Hz, ready for battery |
| HPH 20KVA | GES203HH33A035 | HPH integrated battery 20kVA 380/400/415V, 50/60Hz, inbuilt battery |
| HPH 30KVA | GES303HH33A035 | HPH integrated battery 30kVA 380/400/415V, 50/60Hz, inbuilt battery |
| HPH 40KVA | GES403HH33A035 | HPH integrated battery 40kVA 380/400/415V, 50/60Hz, inbuilt battery |
| Model | HPH-20K, HPH-30K, HPH-40K, HPH-60K, HPH-80K, HPH-100K, HPH-120K HPH-20K-BN/B, HPH-30K-BN/B, HPH-40K-BN/B |
| Power Rating [20K] [30K] [40K] [60K] [80K] [100K] [120K] |
20 kVA/kW 30 kVA/kW 40 kVA/kW 60 kVA/kW 80 kVA/kW 100 kVA/kW 120 kVA/kW |
| Input Nominal Voltage Voltage range Frequency Power Factor Current Harmonic Distortion |
380/220Vac, 400/230Vac, 415/240Vac (3 phase, 4-wire + G) [20-40K]: 300~477 Vac (full load), 228~300 Vac (70%~100% load) [60-120K]: 332~477 Vac (full load), 228~332 Vac (63%~100% load) 40~70Hz > 0.99 (full load) < 3% |
| Output Voltage Voltage Regulation Voltage Harmonic Distortion Overload Capability Output Power Factor Frequency |
380/220Vac, 400/230Vac, 415/240Vac (3 phase, 4-wire + G) ± 1 % [20-40K]: < 1.5% (linear load) [60-120K]: < 2% (linear load) ≤105 %: continuous 106% ~ ≤125%: 10 minutes 126% ~ ≤150%: 1 minute >150%: 1 second 1 50/60Hz +/- 0.05Hz |
