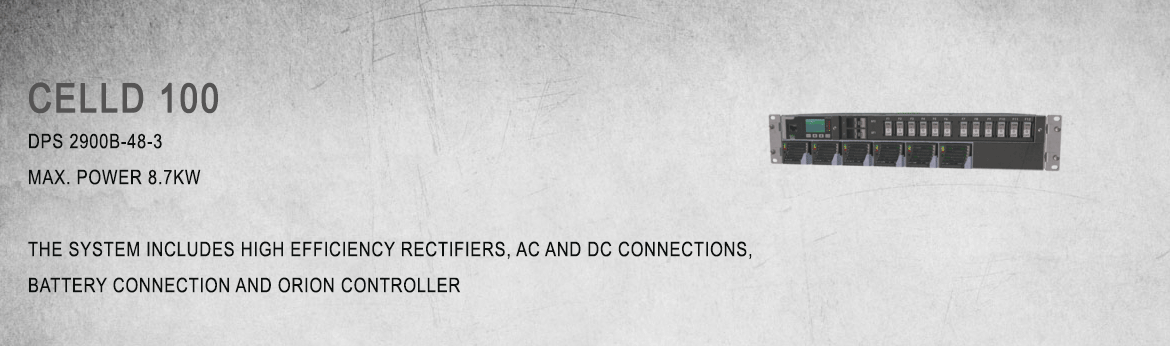

CellD 100

The system includes high efficiency rectifiers, AC and DC connections, battery connection and either ORION or PSC 3 controller.

Download pdf

Email for enquiry
Pre order – email to ca@rectifier.co.za

Category: CellD Cat Slider

Description

They can be embedded in the telecom infrastructure and are often used in OutD outdoor solutions

Applications

Wireless applications, network base stations, LTE
Fixed line applications, broadband services
Transmission

DPS 850B-48-6

Max. power 5.1kW

Cabinet:
Small Power System (2U), Subrack 19”, H86,8 x W444 x D295 mm, steel 19″ mounting flanges
AC-Connection:
3 phase mains terminal (3L+N+PE)
DC-Distribution:
Max. space for 12x load breakers (2, 4, 6, 10, 16, 20. 25 and 30 A) No breakers are included
Battery connection:
2x battery MCB 100 A (NADER make) Battery Low Voltage Disconnection BLVD
Rectifier shelf:
Space and cabling for 6x DPR 850B-48 rectifier modules(Max. power 5.1kW)
Power system controller:
ORION ID: B1 power system controller

DPS 2900B-48-3

Max. power 8.7kW

Cabinet:
Small Power System (2U), Subrack 19”, H86,8 x W444 x D295 mm, steel 19″ mounting flanges
AC-Connection:
3 phase mains terminal (3L+N+PE)
DC-Distribution:
Max. space for 12x load breakers (2, 4, 6, 10, 16, 20. 25 and 30 A) No breakers are included
Battery connection:
2x battery MCB 100 A (NADER make) Battery Low Voltage Disconnection BLVD
Rectifier shelf:
Space and cabling for 3x DPR 2900B-48 rectifier modules (Max. power 8.7kW)
Power system controller:
ORION ID: B1 power system controller

ORDER OPTIONS

DC load distribution (Choose size and amount of load breaker) / CBI make

Load breaker 2 A
Load breaker 4 A
Load breaker 6 A
Load breaker 10 A
Load breaker 16 A
Load breaker 20 A
Load breaker 25 A
Load breaker 30 A

Partial load disconnection (incl. driver board)

PLD 80A 1

System roof (I case of using the DC system inside an optional Wall mounting box or Supporting cabinet maybe not needed)

IP20 cover plates

Mounting flanges / Sliding rails

23″ mounting flanges
Sliding rails for CellD100 power system 1

External alarm D-sub

External alarms are connected from Alarm terminals to ORION/PSC3 controller. Alarm terminals is located on back side
of the system. 1

Battery temp sensor

Battery temp sensor 3m 1
Battery temp sensor 5m
Battery temp sensor 10m
Adapter for 2 temp sensors

Battery cables

Battery cable set 1.5m 25mm2 with cable lugs (M6-M8)
Battery cable set 3m 25mm2 with cable lugs (M6-M8)

Packing

Packing material (Only needed if not installed in a wall mounting
box, supporting cabinet or outdoor cabinet at Delta production) 1

	DPS 2900B-48-3 CellD 100 (PSC system controller)
	DPS 2900B-48-3 CellD 100 (Orion system controller)
	DPS 850B-48-6 CellD 100 (PSC controller)
	DPS 850B-48-6 CellD 100 (Orion controller)
