Rack-Mount Power

Description

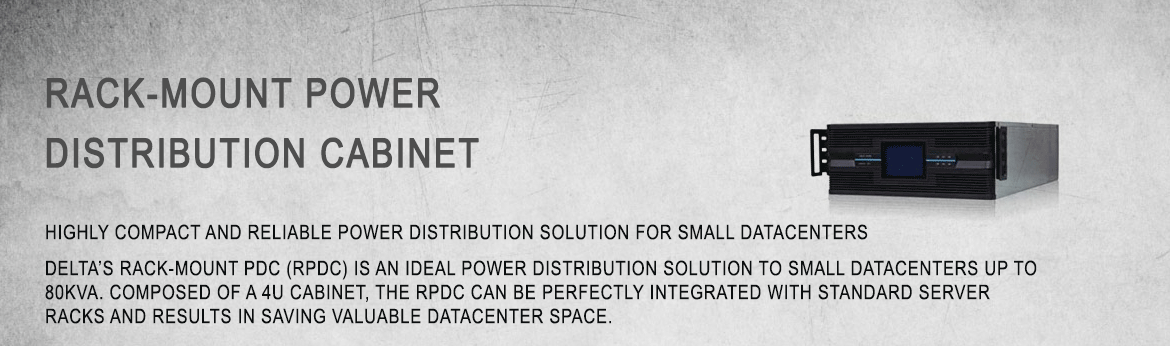

Delta’s rack-mount PDC (RPDC) is an ideal power distribution solution to small datacenters up to 80kVA. Composed of a 4U cabinet, the RPDC can be perfectly integrated with standard server racks and results in saving valuable datacenter space.

For high requirement of datacenter reliability, it also provides excellent branch protection and branch monitoring functions. The RPDC is a superior solution of power distribution management and reduces the total cost of ownership (TCO) of your small datacenters.

Model		Rack-Mount PDC
Input	Nominal Voltage Voltage Range Frequency Range Main Input Breaker	220/380V, 230/400V, 240/415V (3-phase, 4-wire + G) 220/380V ±15% 50/60Hz ±5% 63 / 100 / 160 A
Output	Full Load Rating Nominal Voltage	30 / 50 / 80 kVA 220/380V, 230/400V, 240/415V (3-phase, 4-wire + G)
LCD Display		Total output: Current, load (%), kVA, kW, kW.h and temperature Each branch: Load (%), current and kW.h
Interface	Standard	RS-232 port x 1, CAN Bus port x 1, Smart slot x 1, Output dry contact x 6, REPO x 1
Environment	Operating Temperature Relative Humidity Audible Noise Protection (IP Degree)	0 ~ 40℃ 90% (non-condensing) <70 dBA in normal mode (at a distance of 1 meter in front of the Rack-Mount PDC) IP 20
Others	Parallel Redundancy Emergency Power Off	N/A Yes (Remote)
Physical	Dimensions (WxDxH) Weight Hot-Swappable Breaker Module	430 x 665 x 173 mm 38kg (Max.) 1~6 (at maximum 18-pole supported)
