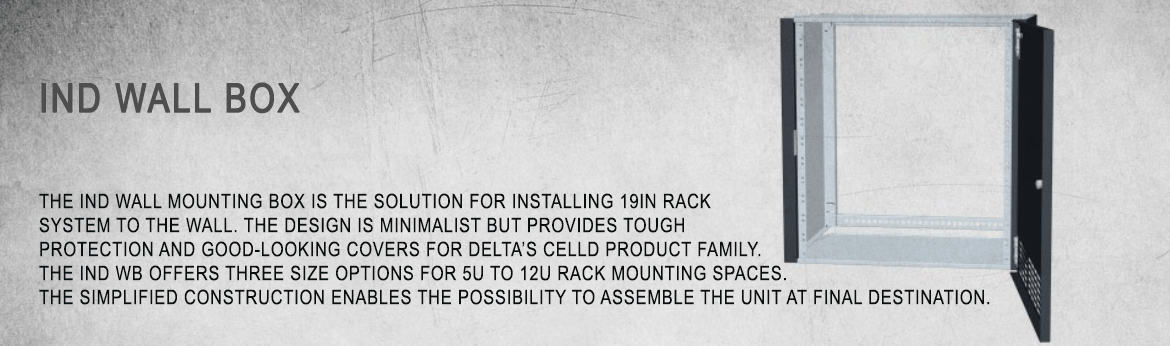

The InD wall mounting box is the solution for installing 19IN rack system to the wall. The design is minimalist but provides tough protection and good-looking covers for Delta’s CellD product family. The InD WB offers three size options for 5U to 12U rack mounting spaces. The simplified construction enables the possibility to assemble the unit at final destination.
WB 12U |
|
| Design | Single layer, indoor cabinet |
| Material | Galvanized steel (HDG or AluZinc) |
| Finish | Polyester Powder Paint RAL7021 |
| Cooling | Natural convention (no fans, no air filter) |
| Door locking (option) | 1 point |
| Cable entry | Cable channels on the top and bottom cover |
| Internal supporters | 19IN rails integrated |
| Battery shelves | – |
| Optional equipment | Front door Blanking plates (1U, 2U and 3U) |
| Internal Space | 12 U |
| Height | 564 mm |
| Width | 548 mm |
| Depth | 475 mm |
| Weight 600 / 450 depth (empty cabinet, no optional items) | 15 kg |
