Cabinet is designed with two types of cooling system: AV (air ventilation) and AV + A/C (hybrid: air ventilation + air conditioner).

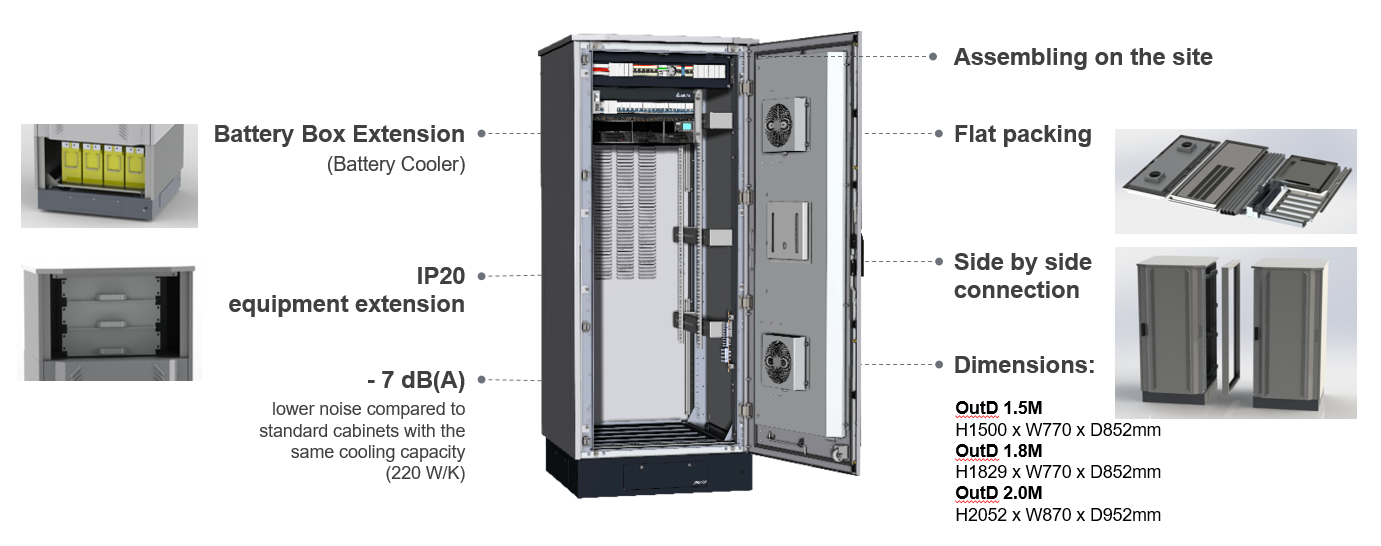

OutD “M” series outdoor cabinets are the new series of the new modular cabinets.
Modular construction of the cabinet is very user friendly. Many parts like door, back wall, side walls and roof can be opened, demounted or removed on site to make the installation of the customer equipment as easiest and as most comfortable as possible.
| General | |
| Construction | Multi-layer HDG Steel,
Thickness: 1.25mm |
| Isolation |
20mm EPS100-038
|
| Protection Class | IP55 |
| Impact Protection | IK10 |
| Dimensions: | OutD1.8M / OutD2.0M |
| Height, overall
Width, overall Depth, overall Hybrid version: Depth, overall Total user space |
1827 mm / 2050 mm
770 mm / 870 mm 852 mm / 952 mm
986 / 1086 mm 35U 19“ /40U 19“ |
| Cabinet plinth | Included, H=150mm |
| Weight | 150 kg |
| Ambient temperature | -25 to +55 °C |
| Inside temperature | +5 to +55 °C |
| Cooling | |
| Cooling type:
Fan type Fan control |
Fans, Air conditioning
EFB1748VHG (2 pcs) PSC3/ORION |
| Air Filter | G3 (for AV); G4 or M5 (for HYB) |
| Locking Mechanism | Prepared for a half cylinder. (Lock provided by customer) |
| Cable entry | |
| Entry point
Type |
Bottom
2xPG16, 6xPG21, 1xPG29; 2xMC25 |
| Plinth cable entry | Bottom, rear and side access |
