APS 1500B-230 19IN



Download pdf pdf

Email for enquiry

Pre order – email to ca@rectifier.co.za

Category:

Description

Energy saving – high efficiency

APS 1500B-230-4 19IN

Description:
APS 1500B-230-4 19IN Terminal output Cabinet:
  • Small Power System (6U), Subrack 19”, H267 x W483 x D379 mm, steel
  • No Sliding mechanism included
AC Input:
  • 1-phase 230VAC, 40A  input MCB
DC Input:
  • 4 x 40A input MCB
AC Distribution:
  • Terminal block (16mm2) L+N+PE
Inverter shelf:
  • Space and cabling for 4x API 1500B-230 inverter modules (nominal Power 6kVA)
    MONITOR TSI-T2S 1U RS485 BRAVO/MEDIA
APS 1500B-230-4 19IN DPN output Cabinet:
  • Small Power System (6U), Subrack 19”, H267 x W483 x D379 mm, steel
  • No Sliding mechanism included
AC Input:
  • 1-phase 230VAC, 40A  input MCB
DC Input:
  • 4 x 40A input MCB
AC Distribution:
  • Space for 11 pcs of DPN breakers, No Distribution alarm
Inverter shelf:
  • Space and cabling for 4x API 1500B-230 inverter modules (nominal Power 6kVA)
    MONITOR TSI-T2S 1U RS485 BRAVO/MEDIA
APS 1500B-230-4 19IN RCD output Cabinet:
  • Small Power System (6U), Subrack 19”, H267 x W483 x D379 mm, steel
  • No Sliding mechanism included
AC Input:
  • phase 230VAC, 40A  input MCB
DC Input:
  • 4 x 40A input MCB
AC Distribution:
  • Space for 7 pcs of RCD breakers, No Distribution alarm
Inverter shelf:
  • Space and cabling for 4x API 1500B-230 inverter modules (nominal Power 6kVA)
    MONITOR TSI-T2S 1U RS485 BRAVO/MEDIA

Media 1.5kVA Inverter

1500VA Modular Inverter

Media will help you cope with mid-range output power needs.

Download pdf pdf

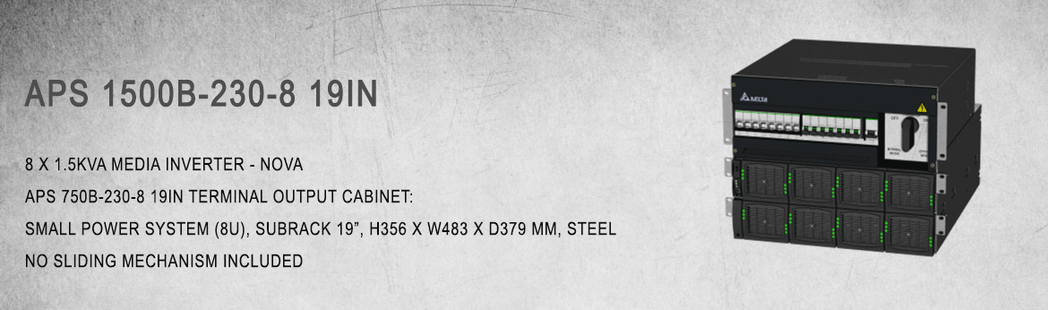

APS 1500B-230-8 19IN

Description:
APS 1500B-230-8 19IN Terminal output Cabinet:
  • Small Power System (8U), Subrack 19”, H356 x W483 x D379 mm, steel
  • No Sliding mechanism included
AC Input:
  • 1-phase 230VAC, 80A input MCB
DC Input:
  • 8 x 40A input MCB
AC Distribution:
  • Terminal block (16mm2) L+N+PE
Inverter shelf:
  • Space and cabling for 8x API 1500B-230 inverter modules
    (nominal Power 12kVA)
    MONITOR TSI-T2S 1U RS485 BRAVO/MEDIA
APS 1500B-230-8 19IN DPN output Cabinet:
  • Small Power System (8U), Subrack 19”, H356 x W483 x D379 mm, steel
  • No Sliding mechanism included
AC Input:
  • 1-phase 230VAC, 80A input MCB
DC Input:
  • 8 x 40A input MCB
AC Distribution:
  • Space for 6 pcs of DPN breakers, No Distribution alarm
Inverter shelf:
  • Space and cabling for 8x API 1500B-230 inverter modules
    (nominal Power 12kVA)
    MONITOR TSI-T2S 1U RS485 BRAVO/MEDIA
APS 1500B-230-8 19IN RCD output Cabinet:
  • Small Power System (8U), Subrack 19”, H356 x W483 x D379 mm, steel
  • No Sliding mechanism included
AC Input:
  • 1-phase 230VAC, 80A input MCB
DC Input:
  • 8 x 40A input MCB
AC Distribution:
  • Space for 4 pcs of RCD breakers, No Distribution alarm
Inverter shelf:
  • Space and cabling for 8x API 1500B-230 inverter modules
    (nominal Power 12kVA)
    MONITOR TSI-T2S 1U RS485 BRAVO/MEDIA

Media 1.5kVA Inverter

1500VA Modular Inverter

Media will help you cope with mid-range output power needs.

Download pdf pdf



ORDER OPTIONS

AC load distribution DPN (Choose size and amount of load breaker) / SCHNEIDER make
Load breaker IDPN 4 A
Load breaker IDPN 6 A
Load breaker IDPN 10 A
Load breaker IDPN 16 A
Load breaker IDPN 20 A
Load breaker IDPN 25 A
Load breaker IDPN 32 A
Load breaker IDPN 40 A
AC load distribution RCD (Choose size and amount of load breaker) / SCHNEIDER make
Load breaker RCD IDPNN 4 A
Load breaker RCD IDPNN 6 A
Load breaker RCD IDPNN 10 A
Load breaker RCD IDPNN 16 A
Load breaker RCD IDPNN 20 A
Load breaker RCD IDPNN 25 A
Load breaker RCD IDPNN 32 A
Load breaker RCD IDPNN 40 A
AC Distribution Alarm (Auxiliary switches)
Distribution alarm DPN
Distribution alarm RCD
Manual Bypass
Manual bypass 63A for APS 1500B-230-4
Manual bypass 100A for APS 1500B-230-8
Packing
Packing material (Only needed if not installed in a wall mounting box, supporting cabinet or outdoor cabinet at Delta production)
