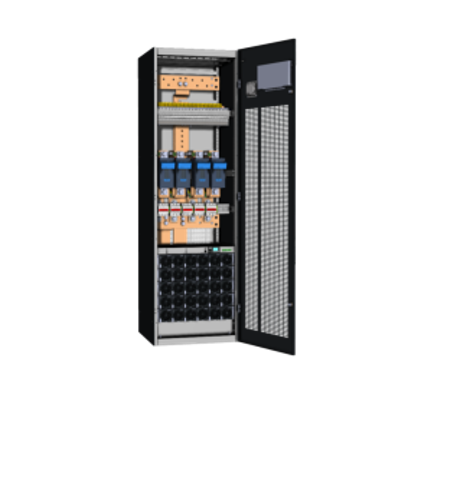

CabD is Delta’s robust indoor cabinet developed for telecom power systems.
The number 2000 defines the maximum current carrying capacity of cabinet bus bars. A complete system includes high efficiency rectifiers, AC and DC connections, battery connection and the advanced ORION controller.
Applications
| Standalone/Multicabinet | Multicabinet (Parallel option) |
| Rectifier Module |
DPR 6000 ( max 20 pcs)
DPR 4000 (max. 30 pcs), |
| Max. output current / max. installed power | 2000 A / 120 kW |
| Efficiency | 95.2 % … 96,5 % |
| AC configuration | 3L+N+PE or 3L+PE |
| Load and battery connection | Configurable – modular design |
| Controlling and monitoring | ORION |
| Operating temperature | -5 – +45 °C |
| Controller | Battery Connection | Battery Connection | Battery Connection |
 |
 |
 |
 |
|
Controller shelf 1U |
Battery fuse TPS2 up to 4x 1600 A |
Battery fuse EFEN NH3 up to 4x 630 A |
Battery fuse EFEN NH2 up to 4x 400 A |
| Load connection | Load connection | Load connection | Load connection |
 |
 |
 |
 |
|
DPD 8x EFEN NH00 2..160 A |
DPD 7x NH02 100..400 A |
DPD 30x MCB 2..63 A |
DPD 13x 22×58 2..100 A |
