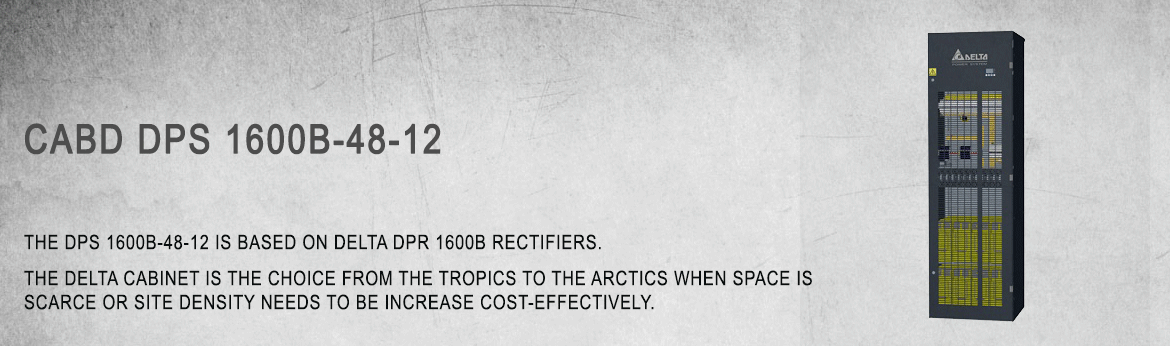

The DPS 1600B-48-12 is based on Delta DPR 1600B rectifiers.
The Delta cabinet is the choice from the tropics to the arctics when space is scarce or site density needs to be increased cost-effectively.
It belongs to the Delta CabD product series. This energy efficient, high power density system is ideal for space-critical applications. An integrated modular system allows flexible and adaptable installations. The system includes up to twelve rectifiers, AC and DC connections, battery connection and the Delta PSC 3 controller. In addition, easy installation and expandability add to the success of the system.
|
AC input connection
|
3L + N + PE
|
|
AC input voltage
|
80…300 VRMS
|
|
DC voltage range
|
42 – 58 VDC, 53.5 VDC nom
|
|
Power, nominal
|
DPS 2900B-48-6: 17.4 kW
|
|
Efficiency rectifier
|
DPS 2900B-96%: 96.4%
DPS 2900B-97%: 97.2%
|
|
Controller
|
Orion |
| Rectifier |
DPS 2900B-96% x 6 maximum
DPS 2900B-97% x 6 maximum
|
