Description

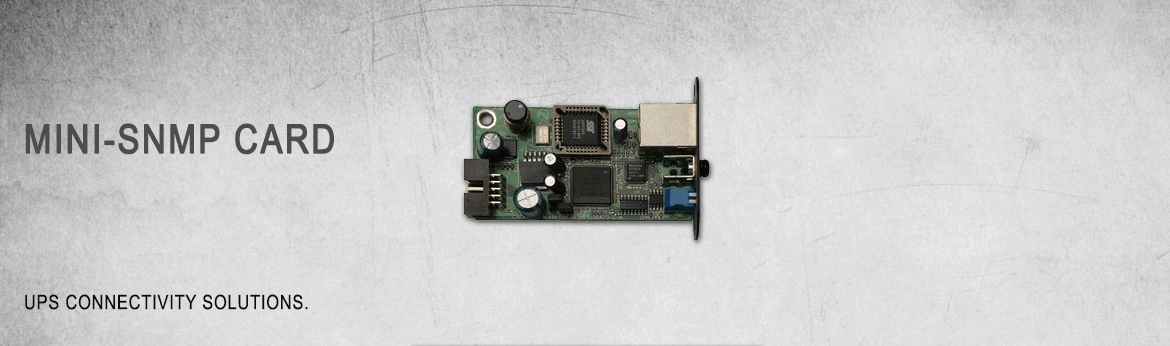

SNMP card is additional communication interface between UPS and the network. Card allows UPS remote control and monitoring through the network. The card can be installed into UPS with Mini-card slot.
Features
Network
SNMP – SNMPv1 protocol support; accepts NMS monitoring as well as actively sends Trap packets to target hosts
HTTP – Monitor and set up through network browser with built-in web server
Others – Telnet, TFTP, FTP, BOOTP, SMTP, SNTP, DHCP and WOL
MIB – Supports RFC1628 and Delta proprietary UPSv4 MIB
Management
Regular power on and off – Can set up UPS power on and off time
Regular testing – Battery discharge test to ensure the battery is in good condition
Smart power off – Can send power off signal to connected host actively if the host computer has the InsightPower Client or SNMP power off proxy installed
Diagnosis
Event log – Keep date, time, and event sequence in event log file
History records – Keep date, time, and UPS parameter data. Can be exported into XLS file for further processing
Reaction to events
UPS shutdown – Define delay time for UPS power off to avoid deep discharge
Email – Send email notification to predefined recipients in case of power event
