Description

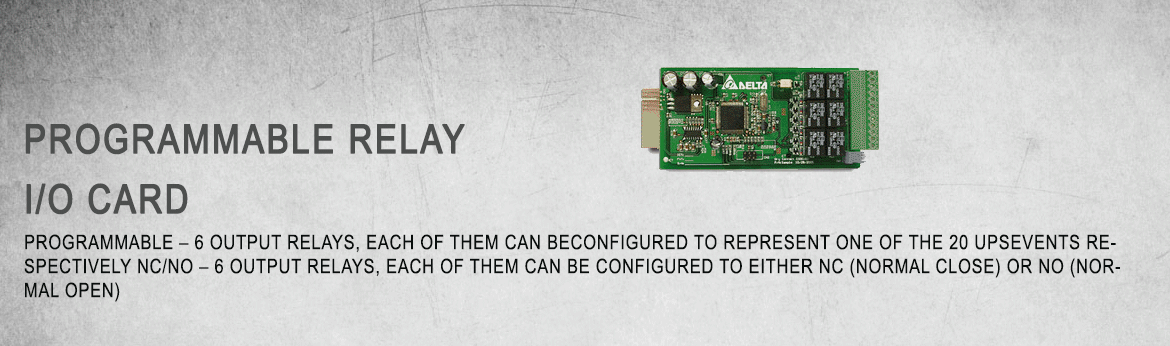

The relay I/O card expands communication ability of the UPS and can be installed in the Smart slot. The card allows monitoring of UPS with 6 output programmable dry contacts. 1 input dry contact can be set as UPS shutdown.

Output
Programmable – 6 output relays, each of them can be configured to represent one of the 20 UPSevents respectively
NC/NO – 6 output relays, each of them can be configured to either NC (Normal Close) or NO (Normal Open)

Input
Programmable – The input signal can be configured to turn off the UPS or to issue battery test command

Features

UPS status information presented as 6 contact closures.
Programmable output contacts monitor the UPS events that users really concern in different application practices.
Output relays can be configured to either NC (Normal Close) or NO (Normal Open).
Configurable UPS shutdown delay time.
Configurable input signal as shutdown UPS or battery test.

5 port 10/100M RJ45 connector
Operation temperature	0 ~ 40°C
Operation humidity	10 ~ 80 %
Input power	8 ~ 20 VDC
Power consumption	< 1.2W
Dimensions	130 x 60 mm
Weight	200g
