Description
The DC power supply consist of (1) rectifier for outdoor stand along communication system, (2) Mounting kit for wall mount or pole mount, (3) Two sets of DC cable.

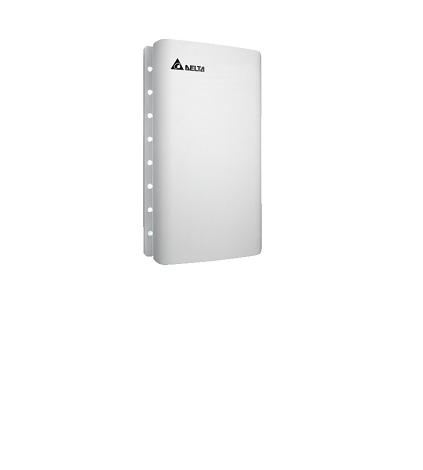

DPR 600B-48 EnergE
Single Phase Rectifier, the rectifier requires a nominal input of 100VAC – 200VAC and provides an output of-54 VDC to power the load of communication equipment.
| AC configuration | 103W |
| Mains voltage | 90-120VAC |
| Mains frequency | 50 / 60HZ |
| Nominal system voltage | 54.0VDC |
| Output voltage | 42.0 – 58.0VDC |
| Output power | 600W@100VAC; 1000W@200VAC;
650W@110VAC; 1000W@230VAC; |
| Output current | 12.5A@100VAC; 20.8A@200VAC;
13.5A@110VAC; 20.8A@230VAC; |
| Over voltage protection | 56.0 V |
| Load sharing | Yes |
| Protection | Internal fuse |
