Description
An integrated modular system allows flexible and adaptable installations. The system includes up to eight inverters, DC and AC connections. In addition, easy installation and expandability add to the success of the system.

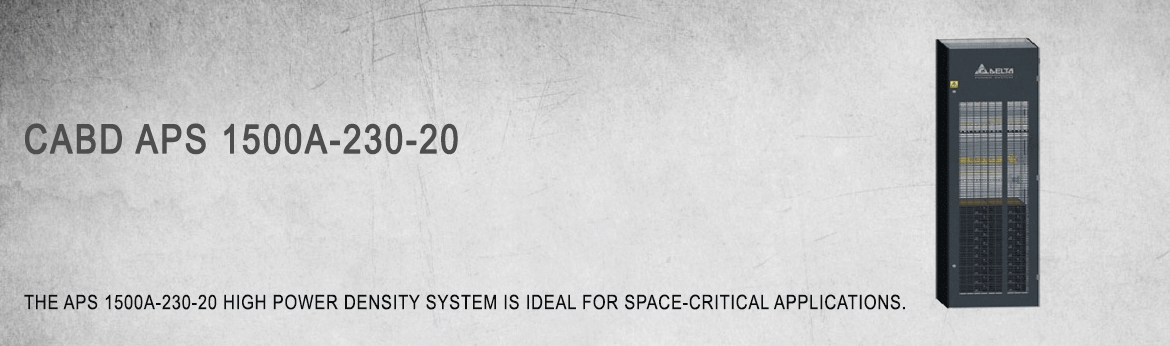

CabD APS 1500A-230-20
The APS 1500A-230-20 high power density system is ideal for space-critical applications.
|
Input
|
|
|
DC Voltage range
|
40 – 72 VDC
|
|
Nominal current
|
20 x 35 ADC
|
|
Maximum current (5 s)
|
20 x 50 ADC
|
|
Terminal
|
35 mm2 or higher
|
|
Feeding fuse (external)
|
Based on cabling
|
| Output | |
| Voltage, nominal |
230 VRMS ± 1 %
(208 / 220V / 230 / 240 Vrms – configurable)
|
|
Frequency
|
50 Hz ± 0.05 Hz |
|
Power, nominal
|
30000 VA / 24000 W
|
|
Current nominal
|
130 ARMS
|
|
PDU MCB (DPN) 3
|
3 * 30 pcs / 2 A – 40 A
|
|
Connections
|
16 mm2 (L + N + PE)
|
| General | |
| Height, overall | 2000 mm |
| Width, overall |
600 mm
|
|
Depth, overall
|
600 mm |
| Weight, system | 115 kg |
| Efficiency |
≥ 90 %
|
|
Operating temperature
|
-5 to +45 °C |
| Relative humidity | 95 % max, non. cond. |
| Safety |
IEC/EN 60950
|
|
EMC
|
EN 300 386-2 |
| Protection class | IP 20 |
| Indicators |
LED
|
| Remote alarm |
2 x potential free contact
|
| See inverter fact sheet |
API 1500A-230
|
