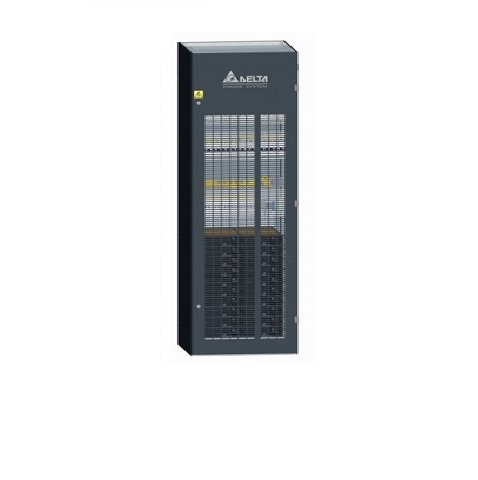

The Delta cabinet is the choice from the tropics to the arctics when space is scarce or site density needs to be increased cost-effectively.
The Delta series offers several size options, ensuring right dimensions for telecom equipment. A flexible configuration is the way to tailor solutions for your demand, and our cabinets offer and option to build the whole base station inside. Wall options are with multi- or single-layer, and mulit lock mechanism completes the protection of installed equipment.
|
Input
|
|
|
DC Voltage range
|
40 – 72 VDC
|
|
Nominal current
|
20 x 35 ADC
|
|
Maximum current (5 s)
|
20 x 50 ADC
|
|
Terminal
|
35 mm2 or higher
|
|
Feeding fuse (external)
|
Based on cabling
|
| Output | |
| Voltage, nominal |
230 VRMS ± 1 %
(208 / 220V / 230 / 240 Vrms – configurable)
|
|
Frequency
|
50 Hz ± 0.05 Hz |
|
Power, nominal
|
30000 VA / 24000 W
|
|
Current nominal
|
130 ARMS
|
|
PDU MCB (DPN) 3
|
3 * 30 pcs / 2 A – 40 A
|
|
Connections
|
16 mm2 (L + N + PE)
|
| General | |
| Height, overall | 2000 mm |
| Width, overall |
600 mm
|
|
Depth, overall
|
600 mm |
| Weight, system | 115 kg |
| Efficiency |
≥ 90 %
|
|
Operating temperature
|
-5 to +45 °C |
| Relative humidity | 95 % max, non. cond. |
| Safety |
IEC/EN 60950
|
|
EMC
|
EN 300 386-2 |
| Protection class | IP 20 |
| Indicators |
LED
|
| Remote alarm |
2 x potential free contact
|
| See inverter fact sheet |
API 1500A-230
|
