Description

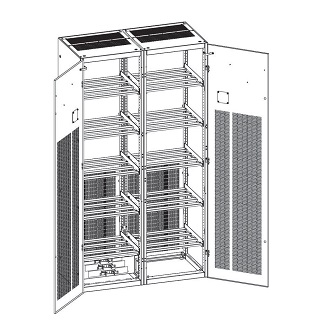

Battery frame for front terminal batteries – DPS and DPH series UPS. The frame has two parts: VFF UPS PK0 (contains NH0 size fuse holders up to 160A) and VFF UPS w/o PK0. For currents over 160A, extra protection box is needed with NH2/NH3 holders. Optional possibility to add doors and walls to the frame and create VLF battery cabinet.
Specs
Cabinet Dimensions: 2200 x 1200 x 600 mm (HxWxD)
Weight: 103,6 kg (without batteries and cables)
Battery: 40 front terminal batteries up to 200Ah
Protection: Built in NH0 fuses up to 160A for battery protection(Semiconductor fuse) gR characteristic (fuse is selected separately with cable kit for proper UPS capacity)
Cabling: Not included.
