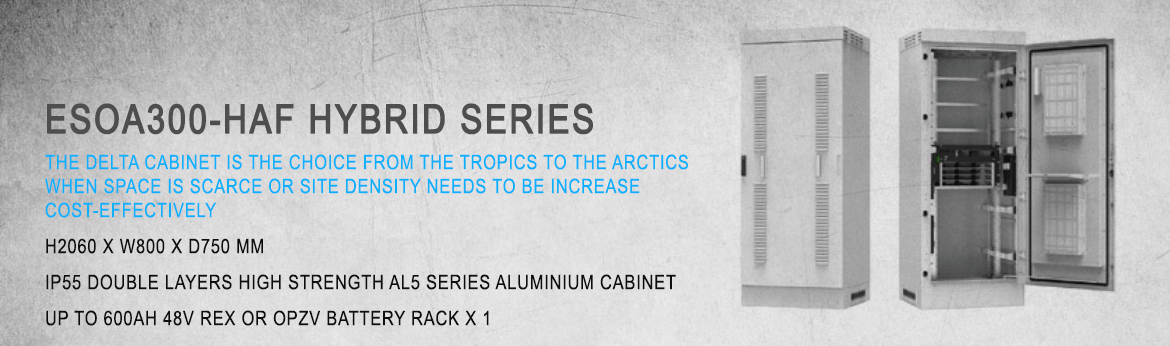

The Delta cabinet is the choice from the tropics to the arctics when space is scarce or site density needs to be increase cost-effectively

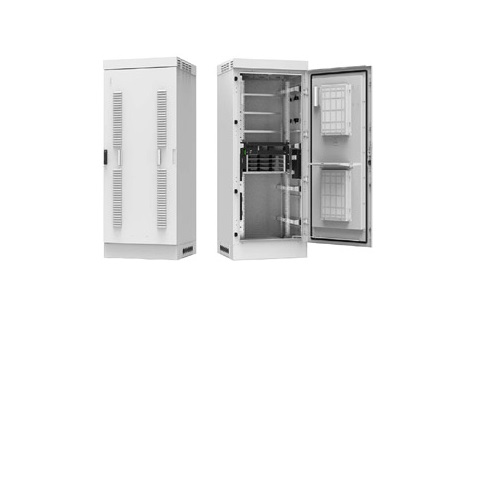

The Delta series offers several size options, ensuring right dimensions for telecom equipment. A flexible configuration is a way to tailor solutions for your demand, and our cabinets offer and option to build the whole base station inside. Wall options are with multi- or single layer, and multi-lock mechanism completes the protection of installed equipment.
Advanced thermal cooling enables remarkable savings both in the capital and operational expenditures…
|
Cabinet structure
|
|
|
Dimension
|
Max. H2060 x W800 x D750 mm
|
|
Construction
|
IP55 double layers high strength AL5 series aluminium cabinet
|
| Materials:
– Cabinet outer skin – Cabinet inner skin – Internal frames – Plinth – Gasket – Thermal insulation |
2mm aluminium steel with painting galvanised steel (SGLCC) 3mm aluminium Continues Form-in-Place (FIP) gasket 20 mm EPS |
| Internal rack dimension – Battery space | Up to 600AH 48V REX or OPzV battery rack x 1 |
| Door locking | 4 points
Key and inserts – configurable door stopper |
| Lifting Ears | 4 hangers under roof cover |
| Plinth | Standard (150 mm height) with 22x snap plugs (EPDM material |
| Ground bar | Telecom equipment ground bar x 1 Plinth ground bar x 1 |
| PE earthing stud | M8 2 holes lock, pitch 25.4mm (in plinth rear left side) |
| Cable Entry
Bottom access Cabinet floor |
Left side: 3xPG9, 7xPG13.5, 4xPG36 Right side: 2xPG9, 5x PG13.5, 2xPG16, 6xPG21, 2xPG29 |
| Weight | Approx. 170Kg (W/O battery, external, cooling unit) |
| Finish | Polyester Powder Paint, RAL7035 |
| Standard accessories | Including:
DC cable: #2 AWG (33mm2) x 100M PV cable: #10 AWG (5mm2) x 200M PV cable connector: 10 sets Cable lug for DC cable: 10 pcs |
