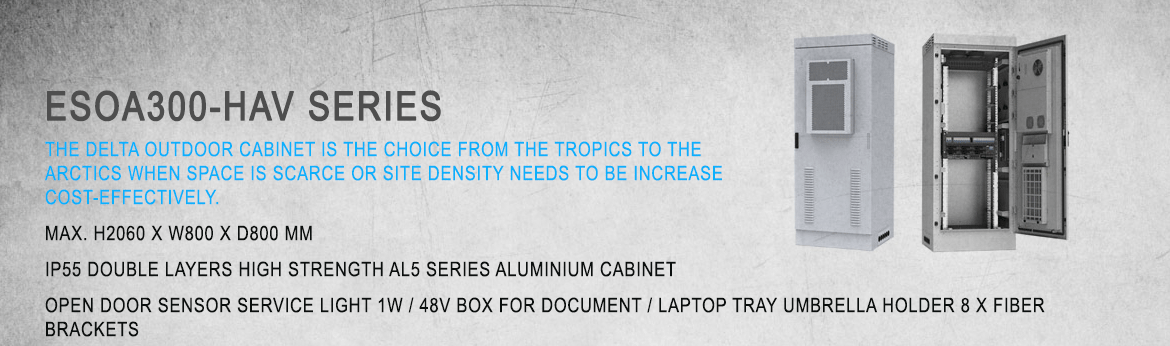

ESOA300-HAV Series

Description

The Delta outdoor series offers several size options, ensuring right dimensions for telecom equipment. A flexible con-figuration is the way to tailor solutions for your demand, and our outdoor cabinets offer and option to build the whole base station inside. Wall options are with multi- or single-layer, and mulit lock mechanism completes the protection of installed equipment.

Advanced thermal cooling enables remarkable savings both in capital and operational expenditures.

Cabinet structure
Dimension	Max. H2060 x W800 x D800 mm (overall with plinth, without external, cooling units)
Construction	IP55 double layers high strength AL5 series aluminium cabinet
Materials: – Cabinet outer skin – Cabinet inner skin – Internal frames – Plinth – Gasket – Thermal insulation	2mm aluminium steel with painting galvanised steel (SGLCC) steel with painting galvanised steel (SGLCC) 3mm aluminium Continues Form-in-Place (FIP) gasket 20 mm EPS
Internal rack dimension – Equipment space – Monitoring system	Top: 19” or 21” x 15U Bottom: 19” or 21” x 15U 19” or 21” x 1U
Door locking	4 points Key and inserts – configurable door stopper
Lifting Ears	4 hangers under roof cover
Plinth	Standard (150 mm height) with 22x snap plugs (EPDM material)
Ground bar	Telecom equipment ground bar x 1 Plinth ground bar x 1
PE earthing stud	M8 2 holes lock, pitch 25.4mm (in plinth rear left side)
Cable Entry Bottom access Cabinet floor	Left side: 3xPG9, 7xPG13.5, 4xPG36 Right side: 2xPG9, 5x PG13.5, 2xPG16, 6xPG21, 2xPG29
Weight	Approx. 170Kg (W/O rectifier, external, cooling unit)
Finish	Polyester Powder Paint, RAL7035
Standard accessories	Adjustable slid equip. supporter x 3 10x alarm connection Krone Open door sensor Service light 1W / 48V Box for document / laptop tray Umbrella holder 8 x fiber brackets Service light 1W / 48V Box for document / laptop tray Umbrella holder 8 x fiber brackets Umbrella holder 8 x fiber brackets
